Pad-Mount Solutions: The Ultimate in Quality and Versatility

Hardcraft offers the finest in termination cabinets, medium-voltage fuse cabinets, switch cabinets, junction cabinets, sectionalizing enclosures, and related pad-mount solutions. Custom designs to enhance safety and improve installation efficiency are our specialty.

We provide a complementary range of bus bars, all fully CNC-machined in-house.

Featured Products

Distribution Term Cab 1 6 Way Closed 1

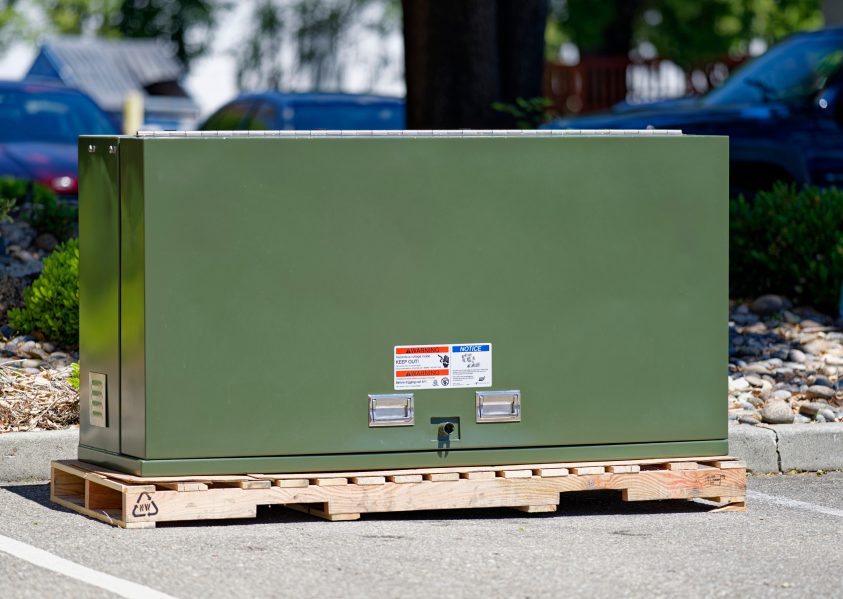

Multipoint Junction/Termination Cabinet

Cabinet offers maximum flexibility, accommodating three multipoint junctions, either four, five, or six-way. Features include:

  • Custom backpanel to precisely mount preferred equipment
  • Lightweight clamshell door for enhanced ergonomics; door locks in the open position to resist wind gusts
  • Executed in fully seam-welded and hand-ground stainless or cold-rolled steel

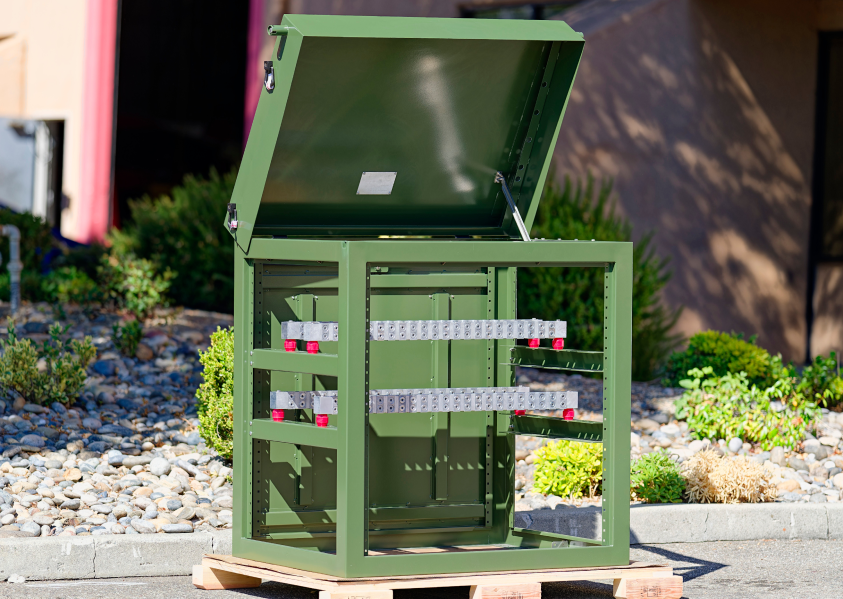

Secondary Termination Cabinet With Lay-In Bus Bars

Cabinet offers access on five sides for ultimate ease of use. Lay-in bus bars greatly simplify installation, reducing the effort required to train cables.

  • Pentabolt locking at left and right sides of roof panel; front and rear panels also pentabolt-secured
  • Left and right side panels lift off tool-free after roof panel is open
  • Bus bars in 6101 or 6063 aluminum as standard, 950-4000A ampacity. Tin, nickel, or silver-plated. Bus bar locations completely adjustable up/down and fore/aft
2024 04 15 11 04 1
Featured Product Termination Cabinet Spade Style Bus Bars

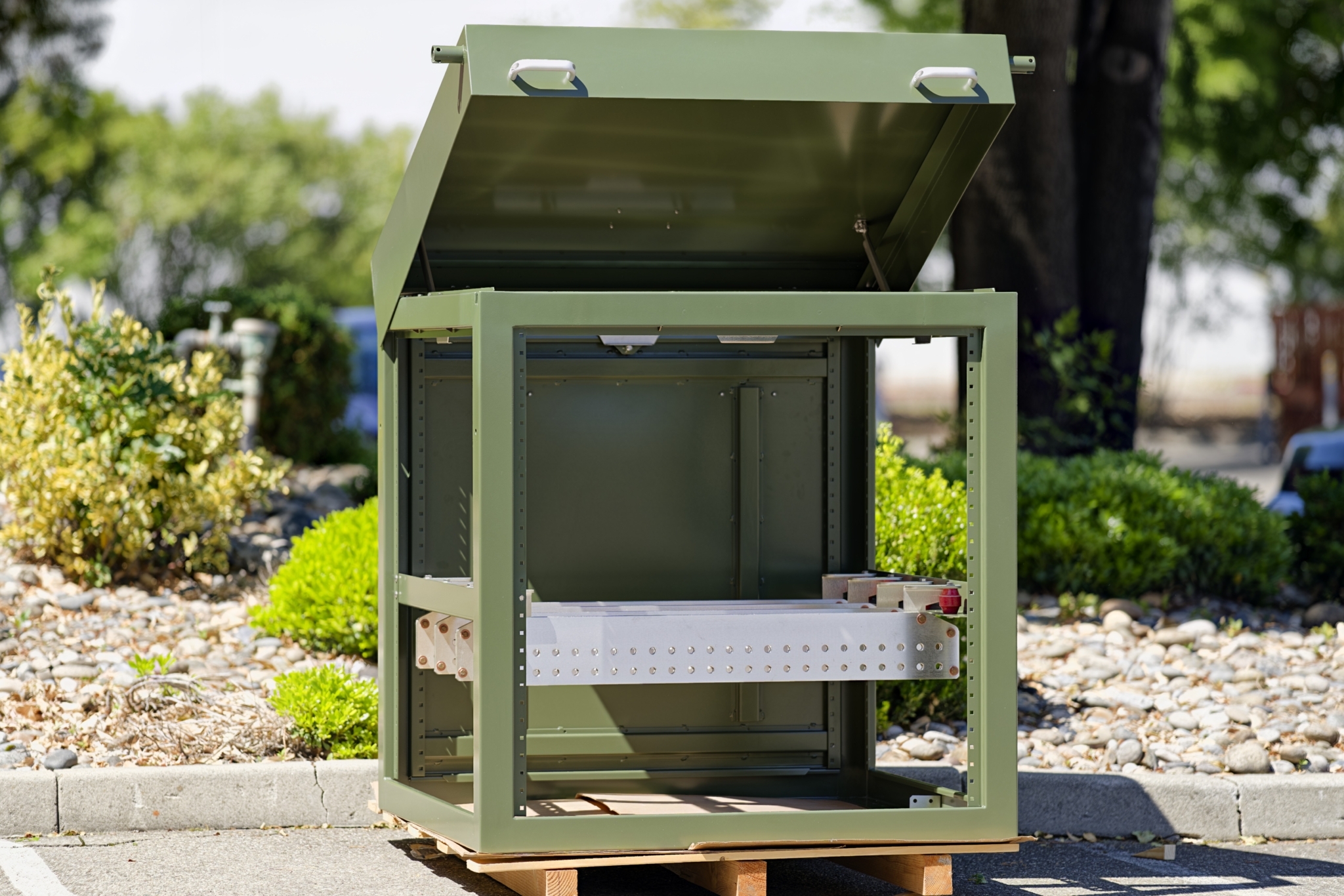

Secondary Termination Cabinet with Spade-Style Bus Bars

Cabinet offers access on five sides for ultimate ease of use. Spade-style bus bars handle high ampacities.

  • Pentabolt locking at left and right sides of roof panel; front and rear panels also pentabolt-secured
  • Left and right side panels lift off tool-free after roof panel is open
  • Bus bars in C110 copper, 1000-4000A ampacity, tin, nickel, or silver plated. Bus bar locations completely adjustable up/down and fore/aft


Medium-Voltage Fuse Cabinet

Our unique medium-voltage fuse cabinet design offers significant operator safety enhancements on the fuse side of the box. Ask us for further details!

  • 15kVA / 200A capacity as standard; other capacities upon request
  • All bushing wells available with fixed or removable studs for ease of field maintenance
  • Executed in fully seam-welded and hand-ground stainless or cold-rolled steel
  • Three heavy-duty hinges per door
2024 04 15 12 21 1
Featured Product Bus Bars

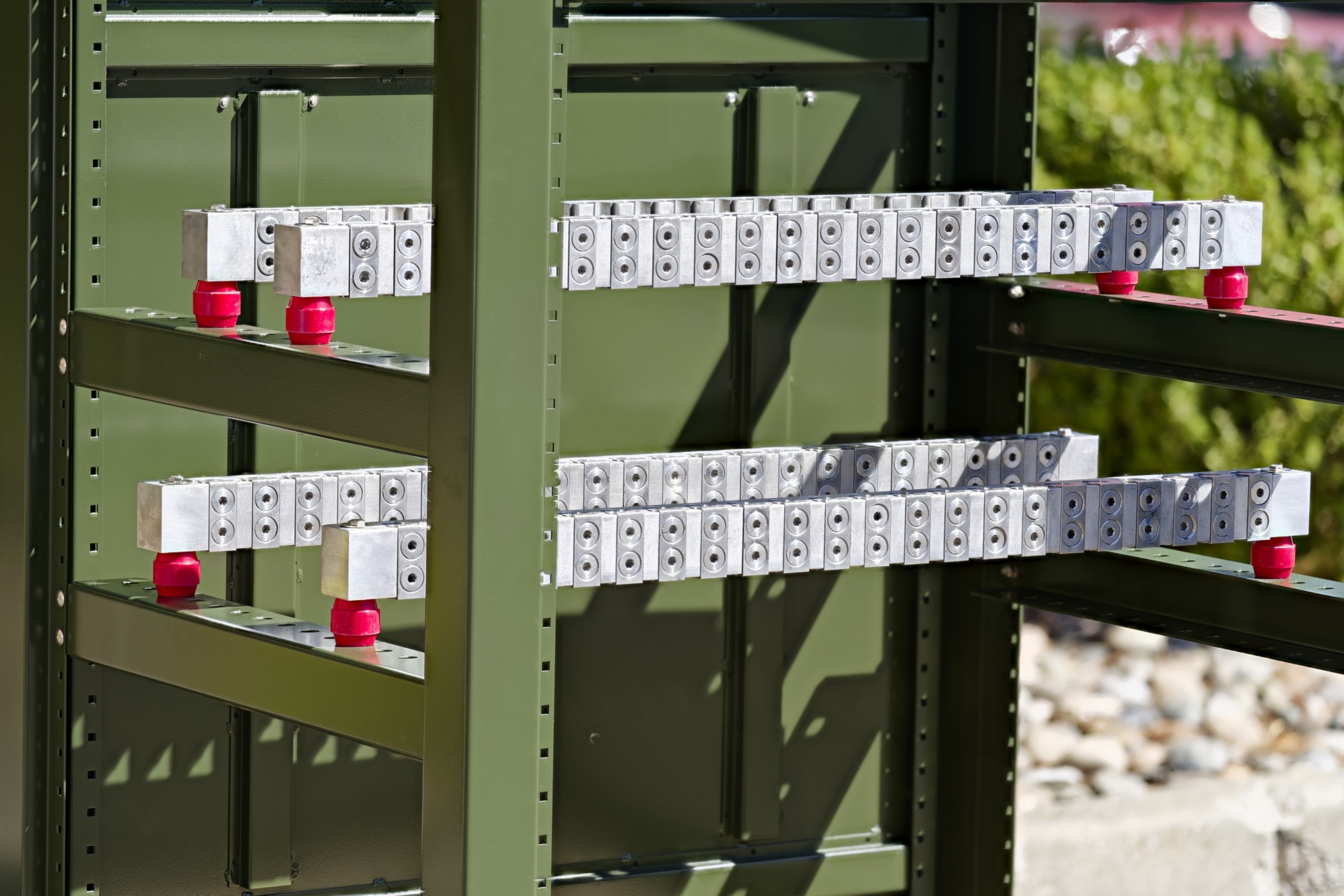

Bus Bars

Bus bars are CNC-machined in-house. Wide range of sizes available to meet ampacity requirements up to 4000A.

  • Standard materials include C110 copper and 6101-T61 aluminum
  • Screws in lay-in bus bars in 2024 aluminum for greater strength and reliability
  • Tin, nickel, or silver plating. Mil-spec silver plating available upon request.
